Retaining walls stabilize soil and enhance outdoor aesthetics, but their longevity depends on proper drainage. A well-designed system protects custom stonework and concrete, maintains soil health, and prevents water damage by managing surface runoff, groundwater, and moisture. In this article, we compare drainage pipe systems, drainage boards, and French drains; review materials like PVC, HDPE, geotextile, gravel, and crushed stone; explain design and installation steps; analyze costs; and provide real-world examples—all while addressing building code and geotechnical engineering concerns.

Why Is Proper Drainage Essential for Retaining Walls?

Proper drainage prevents water accumulation that can increase hydrostatic pressure behind the wall, leading to cracking, leaning, or collapse. Without effective drainage, saturated soils lose bearing capacity, potentially causing foundation shifts that damage adjacent patios, basements, or hardscapes. Efficient drainage using elements like perforated pipes, gravel backfill, and geotextile membranes is crucial for durable construction that complies with building code and protects against moisture and water damage.

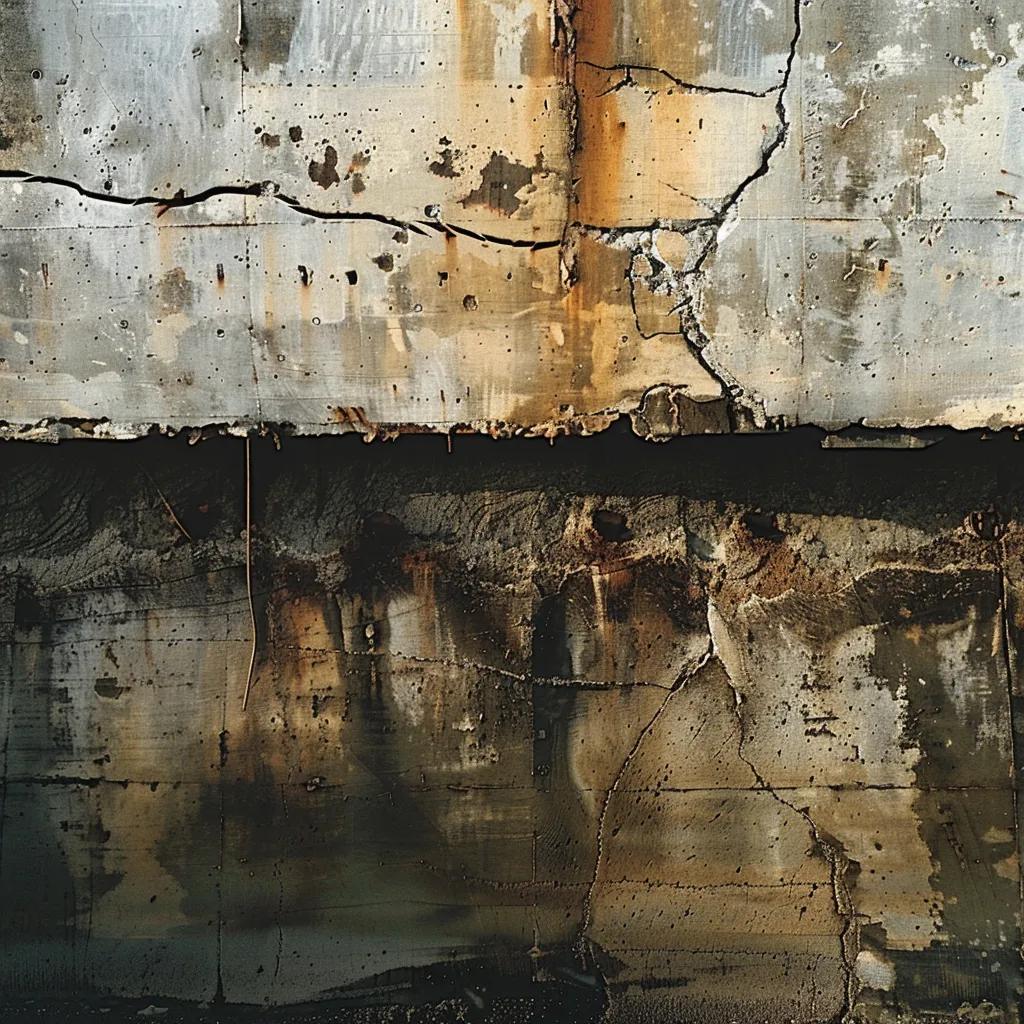

What Risks Do Poor Drainage Systems Pose to Retaining Walls?

Inadequate drainage leads to hydrostatic pressure build-up, which stresses the wall and can result in bending or failure. Constant moisture accelerates the corrosion of steel reinforcements and weakens concrete, particularly in walls built with gabion baskets. Saturated soils may trigger sliding, settlement, and frost heave in cold climates due to freeze-thaw cycles, while surface runoff can erode soil and undermine the structure. These risks increase repair costs and jeopardize the stability of both the wall and nearby structures.

How Does Drainage Improve Retaining Wall Longevity and Stability?

Effective drainage systems channel water away from the wall’s backfill, reducing hydrostatic pressure and preventing structural deformation. By incorporating drainage pipes, French drains, or boards with proper gravel and geotextile layers, the retained soil remains healthy and aerated, alleviating saturation. This controlled environment protects building materials like concrete, gabions, and reinforced steel from water-induced deterioration and minimizes future maintenance expenses, ultimately preserving the foundation and landscape.

What Are the Main Types of Retaining Wall Drainage Systems?

There are three primary drainage systems for retaining walls:

• Drainage Pipe Systems – These use perforated PVC or HDPE pipes laid in gravel-filled trenches with geotextile fabric to filter soil. They are highly efficient at channeling large water volumes away from the wall.

• Drainage Boards – Installed directly behind the wall, these engineered boards create a barrier between the wall and waterlogged soil. They offer simple installation and low maintenance, ideal for high-clay soils.

• French Drains – Consisting of a trench filled with gravel and a perforated pipe, French drains capture water from a broader area and work well on uneven terrain, though they may require more periodic cleaning.

Each system has distinct advantages and drawbacks that depend on soil type, climate, and wall design.

How Do Drainage Pipe Systems Work Behind Retaining Walls?

Drainage pipe systems create an exit route for water behind the wall. A perforated pipe is installed in a trench filled with coarse gravel, which acts as a reservoir and conduit. A consistent slope ensures gravity-assisted flow toward a discharge outlet, such as a dry well. A layer of geotextile fabric wrapped around the system helps prevent soil intrusion, ensuring that water flows freely and maintaining the system’s effectiveness even under heavy rainfall or high water table conditions.

What Are the Features and Benefits of Drainage Boards?

Drainage boards are rigid panels installed against the wall to create a continuous channel for water. Made from durable plastics or composites, they prevent direct contact between the wall and saturated soil, reducing the risk of water damage. Their benefits include ease of installation, low maintenance, and longevity. When paired with gravel and geotextile fabric, drainage boards maintain a clear drainage path that minimizes hydrostatic pressure and prolongs the wall’s structural life while upholding modern building codes.

How Do French Drains Function for Retaining Wall Drainage?

French drains operate by intercepting surface and subsurface water and channeling it away from the wall. A shallow trench is excavated, filled with gravel, and a perforated pipe is placed at its center. The gravel aids in water collection and filtering, while gravity directs water to a safe discharge point. Although French drains cover a broader area—ideal for properties with extensive surface runoff—they may require periodic cleaning to remove sediment and debris.

What Are the Pros and Cons of Each Drainage System Type?

• Drainage Pipe Systems
– Pros: High water capacity, efficient removal, and compatibility with geotextile fabrics.
– Cons: Require precise excavation, grading, and periodic cleaning to remove sediment buildup.

• Drainage Boards
– Pros: Simple installation, low maintenance, protect wall integrity, and maintain aesthetics.
– Cons: May be less effective in very high water volume areas and depend on proper backfill quality.

• French Drains
– Pros: Versatile, cover a broad area, ideal for sloped or uneven terrains.
– Cons: Labor-intensive installation, require wider trenches, and must be regularly maintained to prevent clogging.

Deciding on the best option involves evaluating local site conditions, expected water loads, and long-term maintenance capacity.

Which Materials Are Best for Retaining Wall Drainage Solutions?

High-quality materials are essential for long-lasting drainage systems:

• PVC, HDPE, and Corrugated Pipes – These offer excellent corrosion resistance, smooth interiors for rapid water flow, and ease of installation.

• Geotextile Fabric – Acts as a filter to prevent fine soil particles from clogging gravel and pipes while ensuring effective water passage.

• Gravel and Crushed Stone – Provide a porous medium for rapid water movement, prevent sedimentation, and stabilize the wall by evenly distributing load. Properly graded, clean aggregates are preferred for their permeability and durability.

Using these materials in combination forms a synergistic system that enhances both the structural integrity and drainage efficacy while meeting geotechnical engineering requirements.

What Are the Advantages of PVC, HDPE, and Corrugated Drainage Pipes?

PVC, HDPE, and corrugated pipes are favored for their smooth interiors, fast water flow, and resistance to chemical deterioration. PVC is lightweight and cost-effective, whereas HDPE offers enhanced durability and flexibility to accommodate ground movement and thermal variations. Corrugated pipes adapt well to irregular terrain due to their design, which increases effective surface area. Their low maintenance requirements, when combined with geotextile filtration, make them ideal for reducing hydrostatic pressure and protecting the retaining wall over time.

How Does Geotextile Fabric Enhance Drainage and Prevent Soil Erosion?

Geotextile fabric ensures a clear drainage pathway by filtering water while preventing soil particles from clogging the system. Installed between the soil and gravel or pipes, it stabilizes the backfill and reduces the risk of differential settlement. Its durable composition withstands ultraviolet exposure and biological degradation, making it indispensable for managing moisture levels in climates with heavy rainfall or significant irrigation. This barrier not only supports effective drainage but also helps preserve the landscape by preventing soil erosion.

Why Is Gravel Important for Effective Drainage Behind Retaining Walls?

Gravel is a critical component in retaining wall drainage systems due to its high permeability and ability to facilitate rapid water movement. It forms the backfill that supports drainage pipes and creates channels for water flow, reducing hydrostatic pressure. Properly graded and clean gravel prevents clogging by allowing larger channels for water, distributes the wall’s load evenly, and reinforces the overall structure. Its affordability and availability further make it an ideal material for both functional and aesthetic purposes in landscape and hardscape design.

How Do You Design and Install the Optimal Drainage System for Retaining Walls?

An optimal drainage system design begins with a detailed site evaluation, considering soil type, rainfall intensity, and wall dimensions. The design integrates one or more drainage methods—pipes, boards, or French drains—using key materials like geotextile fabric and gravel for effective water management. The installation process involves excavating a trench with a consistent slope, laying a coarse gravel base, and placing the chosen drainage element according to manufacturer guidelines. Geotextile fabric is then installed to prevent soil intrusion, followed by backfilling and grading the surface to direct runoff away from the wall. Regular inspections and maintenance checks are critical to ensure long-term performance and compliance with building codes.

What Are the Best Practices for Retaining Wall Drainage Design?

Best practices for drainage design include a comprehensive site evaluation to assess soil composition, water table, and climatic factors. Maintaining a proper slope for drainage components is vital for gravity-assisted water flow. Redundancy—using a combination of drainage pipes, boards, and French drains—provides additional protection against failure. Accurate dimensioning of the drainage trench, incorporation of expansion joints, and proper placement of drainage outlets prevent material stress. Finally, designing for easy access during maintenance reinforces long-term reliability while meeting building code and geotechnical standards.

How Is Drainage Board Installation Done Step-by-Step?

1. Site Evaluation & Marking: Measure and mark the designated area behind the retaining wall.
2. Excavation: Dig a trench approximately 12 to 18 inches deep.
3. Base Preparation: Install a solid base layer of coarse gravel or crushed stone.
4. Board Installation: Affix the drainage board vertically to the wall using bolts or adhesives.
5. Backfilling: Cover the board with coarse gravel and then a layer of geotextile fabric to prevent soil intrusion.
6. Grading: Restore the original soil level and grade the surface to promote water flow.
7. Testing: Simulate rainfall to ensure water flows unobstructed along the board.

What Are the Key Steps to Installing Drainage Pipes and French Drains?

1. Assessment & Planning: Determine optimal placement, pipe diameter, and slope based on site conditions.
2. Excavation: Dig a trench deep enough to accommodate a gravel base, the drainage pipe, and sufficient cover, maintaining a consistent 1–2% slope.
3. Base Layer: Lay down a coarse gravel layer to support the drainage pipe.
4. Pipe Installation: Place the perforated pipe with holes facing downward; secure it to a designated discharge outlet.
5. Backfilling: Cover the pipe with additional gravel; for French drains, wrap the assembly in geotextile fabric before backfilling with soil.
6. Grading: Ensure the surface is graded to direct water away from the wall.
7. Inspection: Check periodically to verify that the system remains free of debris and functions properly.

How Do Costs Compare Among Different Retaining Wall Drainage Solutions?

Cost comparisons depend on project complexity, materials, and installation method:

• Drainage Pipe Systems: Generally offer low material costs and high efficiency; however, precise excavation and periodic cleaning may add labor expenses. • Drainage Boards: Although slightly more expensive per linear foot due to materials and installation, their durability and low maintenance can offset initial costs. • French Drains: Often require more extensive excavation and periodic maintenance, potentially increasing overall costs.

Choice between DIY and professional installation shall impact the budget, with professional services ensuring compliance with building codes and long-term stability, while DIY may save upfront labor costs but risk errors.

What Factors Influence the Cost of Drainage Pipe Systems?

Costs for drainage pipe systems are influenced by: – The wall’s length and required pipe quantity. – Pipe diameter and quality; larger or higher-end pipes cost more. – Local labor rates and installation complexity in challenging terrains. – Material costs for gravel and geotextile fabric. – Environmental factors like rainfall and soil permeability, which may necessitate more robust systems. – Whether a DIY or professional installation approach is pursued.

How Does Drainage Board Installation Affect Overall Expenses?

While drainage boards may have higher initial costs compared to pipes, their easier installation and low-maintenance nature can reduce long-term expenses. They minimize moisture-induced damage and can lower repair and insurance costs. Over time, the durability and reliability of well-installed boards often justify the upfront investment, especially in high-end residential applications.

When Is DIY Installation Viable Versus Hiring Professionals?

DIY installation is suitable for straightforward, small to medium retaining wall projects where the homeowner has construction experience and proper tools. However, for complex projects involving steep slopes, deep excavations, or integration with existing systems, professional installation is recommended. Professionals ensure compliance with building codes and provide warranties while reducing the risk of costly repairs due to errors.

How Should Retaining Wall Drainage Systems Be Maintained for Long-Term Performance?

Regular maintenance is key to long-term performance: – Inspect the system at least annually and after heavy rainfall. – Check for sediment buildup, debris, and signs of damage in pipes and boards. – Clean out drainage channels using water or compressed air. – Replace or repair geotextile fabric if torn. – Ensure gravel remains uncompacted to maintain permeability. – Periodically test water flow to promptly address issues before they escalate.

What Are Common Maintenance Tasks for Drainage Pipes and Boards?

Common tasks include: – Visual inspections for debris or sediment buildup. – Flushing drainage pipes with water or compressed air. – Checking that drainage boards remain securely attached. – Monitoring gravel backfill for compaction. – Repairing or replacing damaged geotextile fabric. – Scheduling routine annual maintenance to prevent major issues.

How Can You Identify and Fix Drainage Problems Early?

Early detection is achieved by monitoring: – Water pooling, damp areas, or discoloration along the wall. – Cracks, bulges, or shifts in the wall caused by hydrostatic pressure. – Regular inspections using moisture meters and visual assessments. Once identified, address issues by flushing pipes, removing debris, replenishing gravel, or re-securing drainage boards. For persistent problems, consult a professional specializing in geotechnical repairs to minimize long-term damage.

Frequently Asked Questions

Q: What is the primary purpose of a retaining wall drainage system?
A: To manage and divert water away from the wall’s backfill, reducing hydrostatic pressure and preventing structural failure, while also protecting adjacent structures from water damage.

Q: How often should I inspect my retaining wall drainage system?
A: At least annually and after heavy rain events to detect sediment buildup, corrosion, or misalignment before major repairs are needed.

Q: Can I install a drainage system myself, or should I hire a professional?
A: DIY installation is feasible for simple projects if you have experience and the right tools; however, complex sites with steep slopes or deep excavations are best handled by professionals.

Q: What maintenance is typically required for drainage pipes and boards?
A: Regular cleaning to remove debris, checking and repairing geotextile fabric, maintaining clear drainage pathways, and ensuring gravel backfill does not compact.

Q: How do environmental conditions influence the drainage design?
A: Local climate, soil type, and seasonal variations affect design requirements. Areas with heavy rainfall or freeze-thaw cycles need robust and weather-resistant systems.

Q: Which drainage method is most cost-effective in the long run?
A: It depends on site conditions and maintenance needs. While drainage pipe systems generally offer low initial costs, high-quality materials and proper maintenance are vital for overall cost efficiency.

Q: How do French drains differ from other solutions?
A: French drains cover a broader area and are ideal for uneven terrain by collecting water in a gravel-filled trench, while pipe systems offer a more direct, high-capacity drainage route.

Final Thoughts

Retaining wall drainage is vital for maintaining structural integrity and landscape aesthetics. By effectively managing water through properly designed systems—whether using drainage pipes, boards, or French drains—you can safeguard against water damage, prevent soil erosion, and extend the life of your wall. Careful evaluation of site conditions, adherence to building codes, and consistent maintenance are key to selecting the best solution for your project.
